About TWIN SCREW SUPERCHARGERS
Brand New | With Warranty | Ships Worldwide from Europe

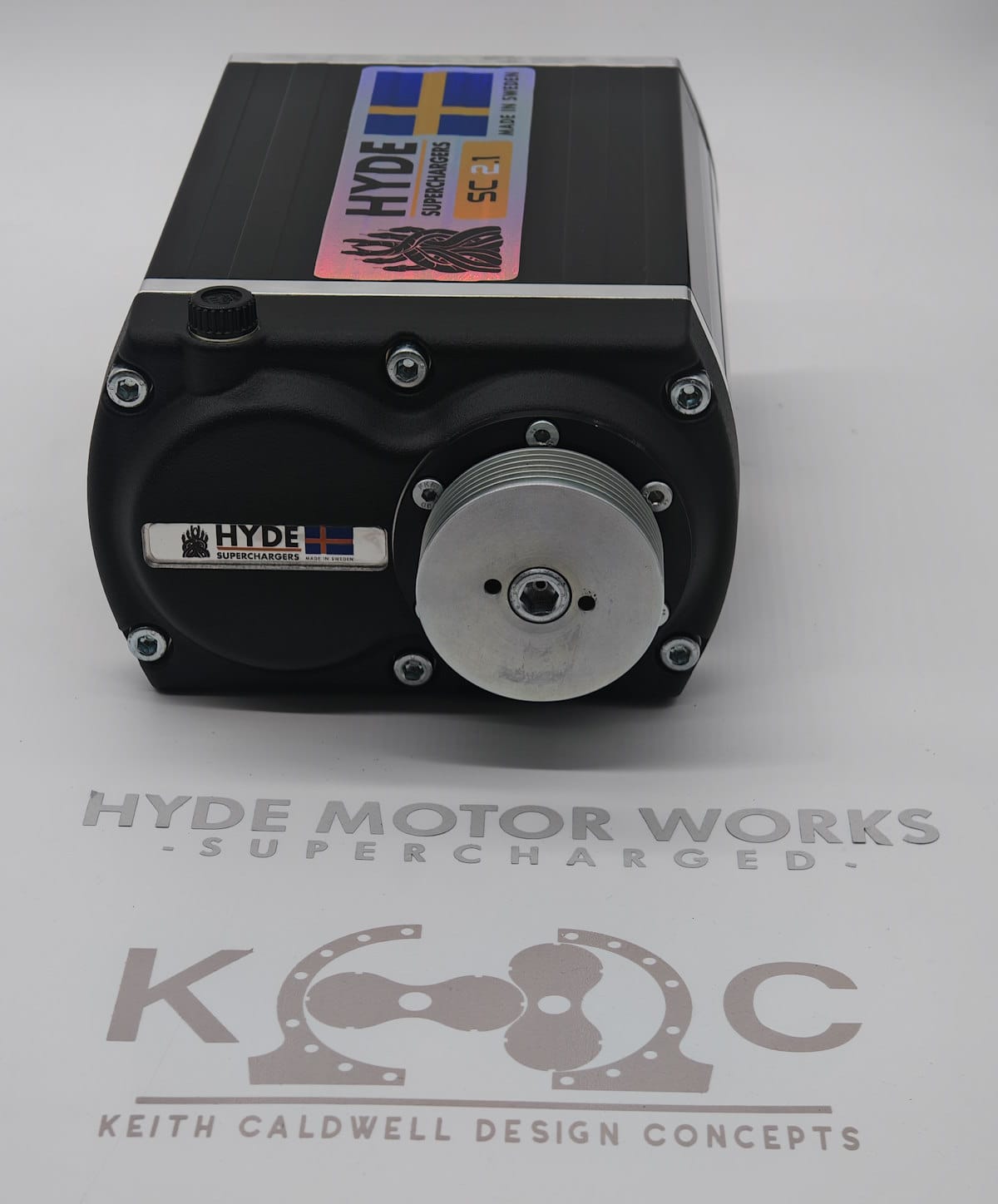

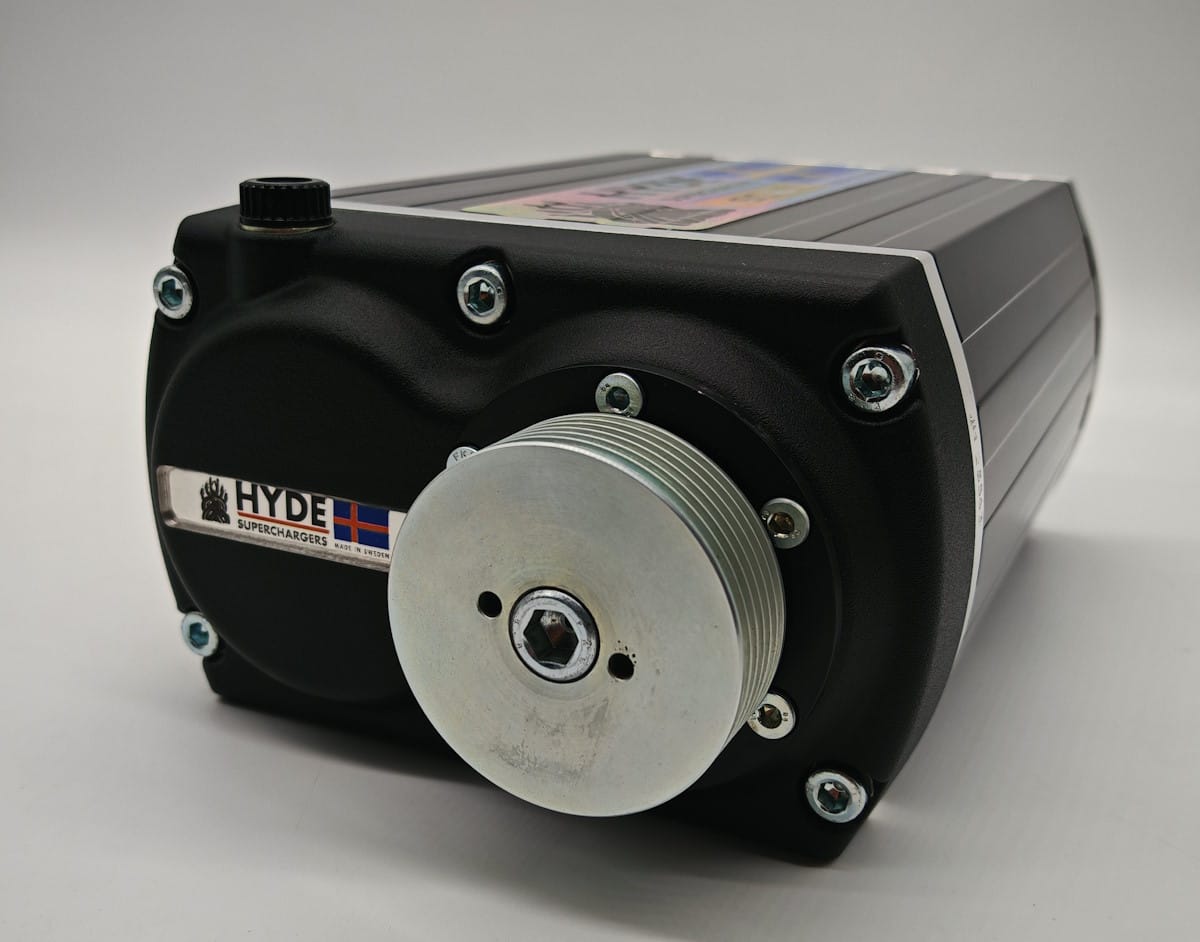

The Hyde Superchargers are compact, affordable, reliable and efficient Twin Screw Superchargers entirely developed, manufactured, tested in Sweden and Germany.
In comparison to the traditional Roots and Centrifugal Superchargers as well as Turbochargers, Our Twin Screw Superchargers offer linear power output throughout the engines power-band. Being a positive displacement Supercharger, there is simply no lag, a great deal of boost develops from the low end and is present throughout the entire rev-range of the engine.
Available displacement ranging from 1.2L all the way up-to 4.7L self-contained units requiring no external oil cooling. With Supercharger speeds ranging as high as 18,000 rpm and a 4×6 Twin Screw Rotor Lobe design, the Hyde Supercharger can deliver pure lag-less power, rapid boost buildup and acceleration at the blimp of the throttle.
The Hyde Supercharger is the next level in supercharging.
Warranty: 12 - 36 Months*
TECHNICAL SPECIFICATIONS
Explore the captivating linear power delivery of a modern Twin Screw Supercharger
1.2L TWINSCREW
Displacement: 1.2 Liter/Rev
Max.RPM: 18,000 RPM
Continuous RPM: 16,000 RPM
Max. Flow: 19,000 liter/min. (680 cfm)
Discharge Temp: 160 Deg. C
Max. Pressure Ratio: 2
Max. Boost Pressure: 1.4-2.4 Bar
Max. Adiabatic Efficiency: 70%
Volumetric Efficiency: 97%
Warranty: 12 Months*

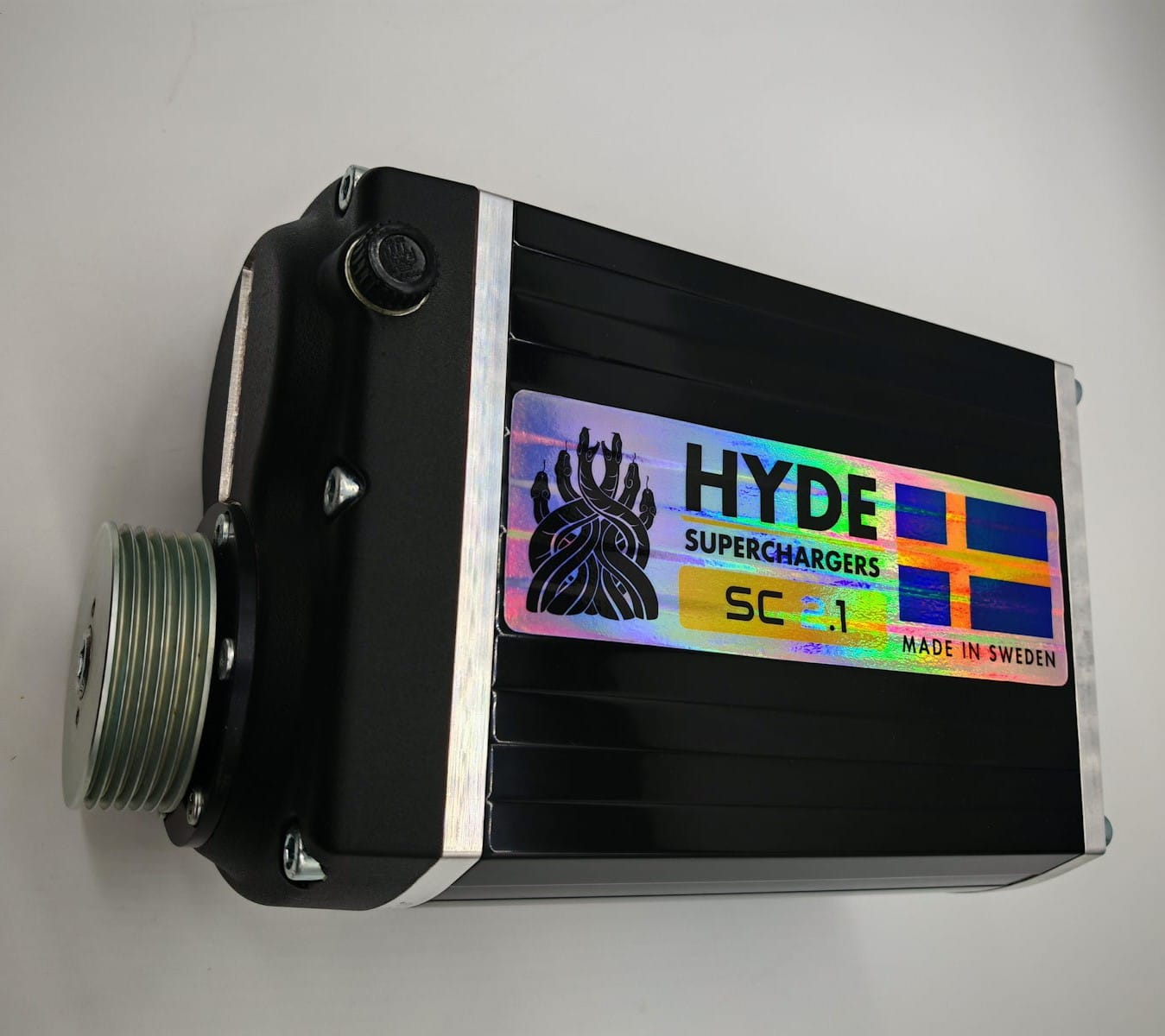

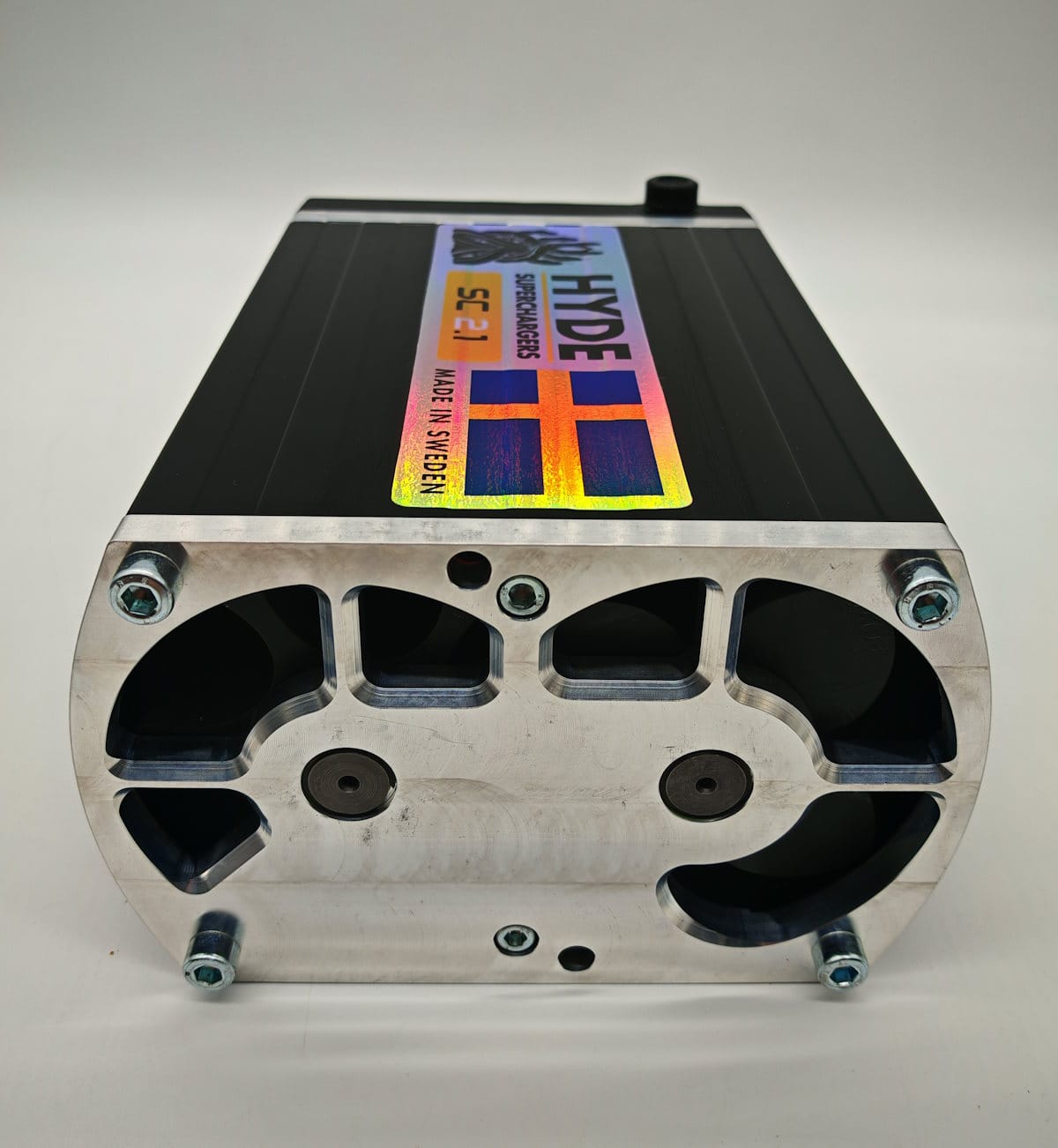

2.1L TWINSCREW
Displacement: 2.1 Liter/Rev
Max.RPM: 16,000 RPM
Continuous RPM: 15,000 RPM
Max. Flow: 30,000 liter/min. (1080 cfm)
Discharge Temp: 160 Deg. C
Max. Pressure Ratio: 2
Max. Boost Pressure: 1.4-2.4 Bar
Max. Adiabatic Efficiency: 70%
Volumetric Efficiency: 97%
Warranty: 24 Months*

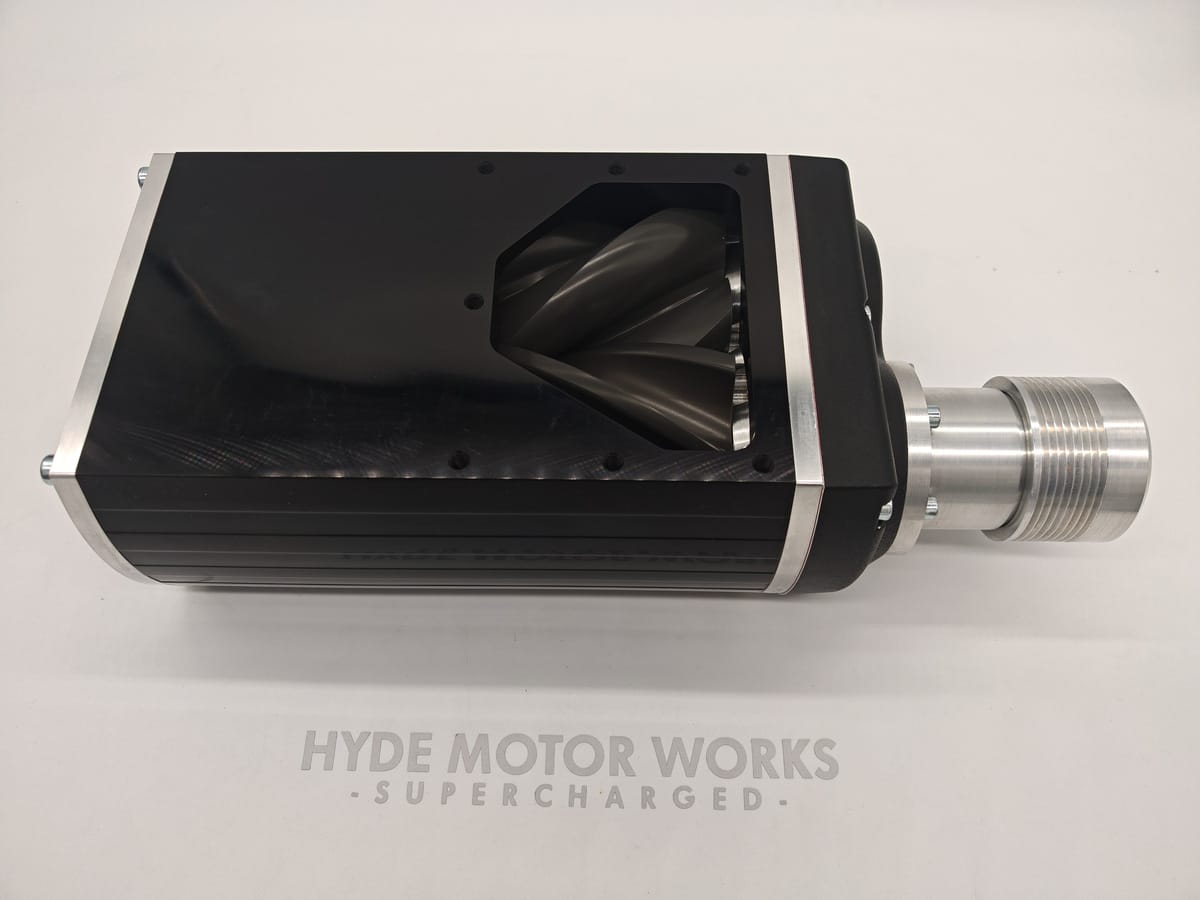

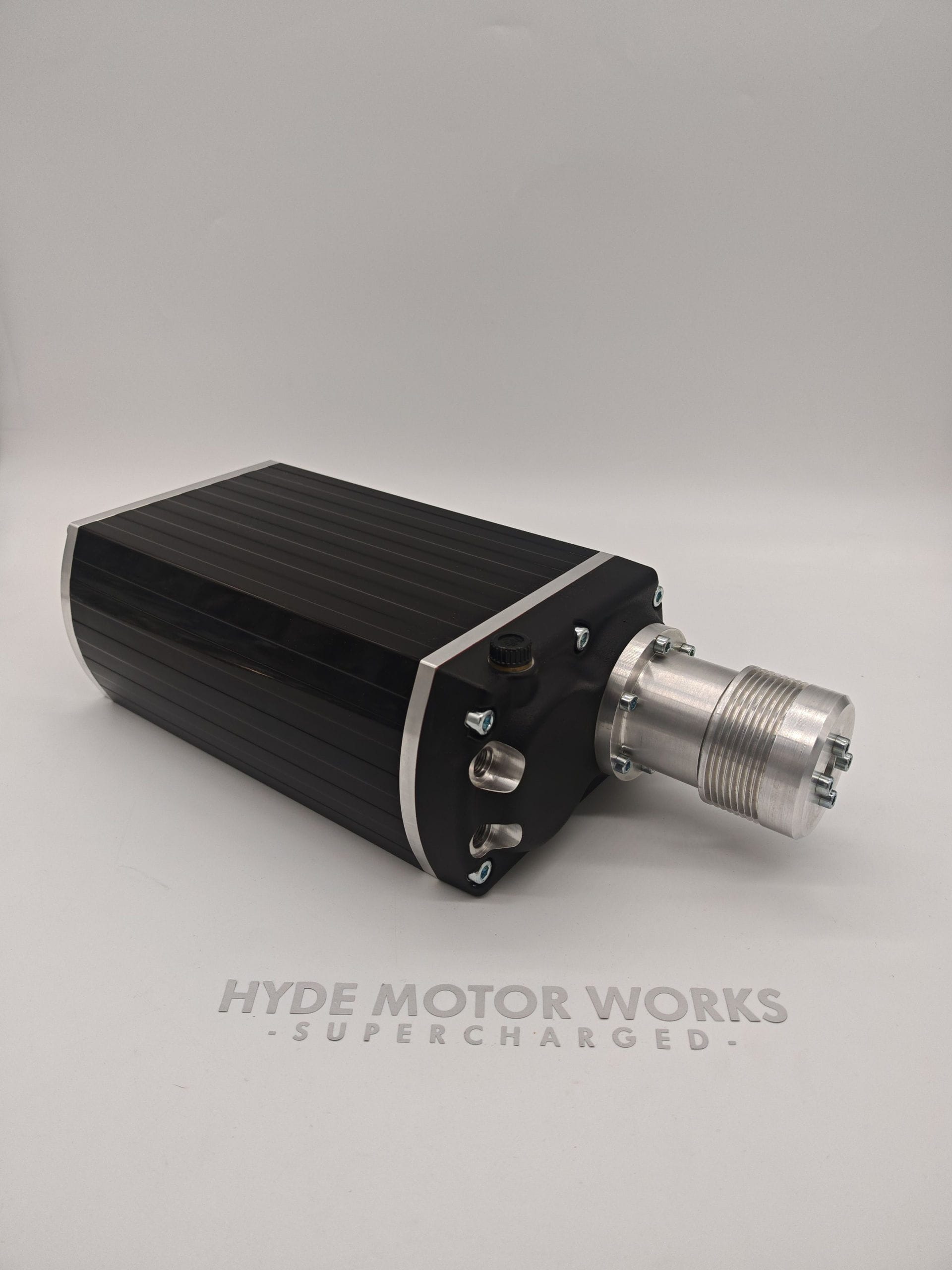

2.8L TWINSCREW
Displacement: 2.8 Liter/Rev
Max.RPM: 16,000 RPM
Continuous RPM: 15,000 RPM
Max. Flow: 40,000 liter/min. (1430 cfm)
Discharge Temp: 160 Deg. C
Max. Pressure Ratio: 2
Max. Boost Pressure: 1.4-2.4 Bar
Max. Adiabatic Efficiency: 70%
Volumetric Efficiency: 97%
Warranty: Limited 36 Months*
3.2 - 4.7L TWINSCREW
Displacement: TBA/Rev
Max.RPM: TBA
Continuous RPM: TBA
Max. Flow: TBA
Discharge Temp: 160 Deg. C
Max. Pressure Ratio: 2
Max. Boost Pressure: 1.4-2.4 Bar
Max. Adiabatic Efficiency: 70%
Volumetric Efficiency: 97%
Warranty: TBA
DIMENSIONS
See our technical drawings for dimensions
Need something More Custom?
Custom Pulleys, WaterCooling & Extended Drive Options
Pulleys Sizes Ø76 - Ø115mm & Extended Drive With Customizable Snout Lengths!
Water Cooling Option Available on 2.8L & Larger Units!
Advantages to consider
Forget gimmicks. Get Supercharged!
Acceleration & Power
Linear power curve of a Twin Screw Supercharger comes from it’s ability to make boost at very low end engine rpm’s, resulting in instant boost & power that is unmatched. In comparison to a centrifugal supercharger or a turbocharger, there is no compressor spool time or lag.
Reliable Performance

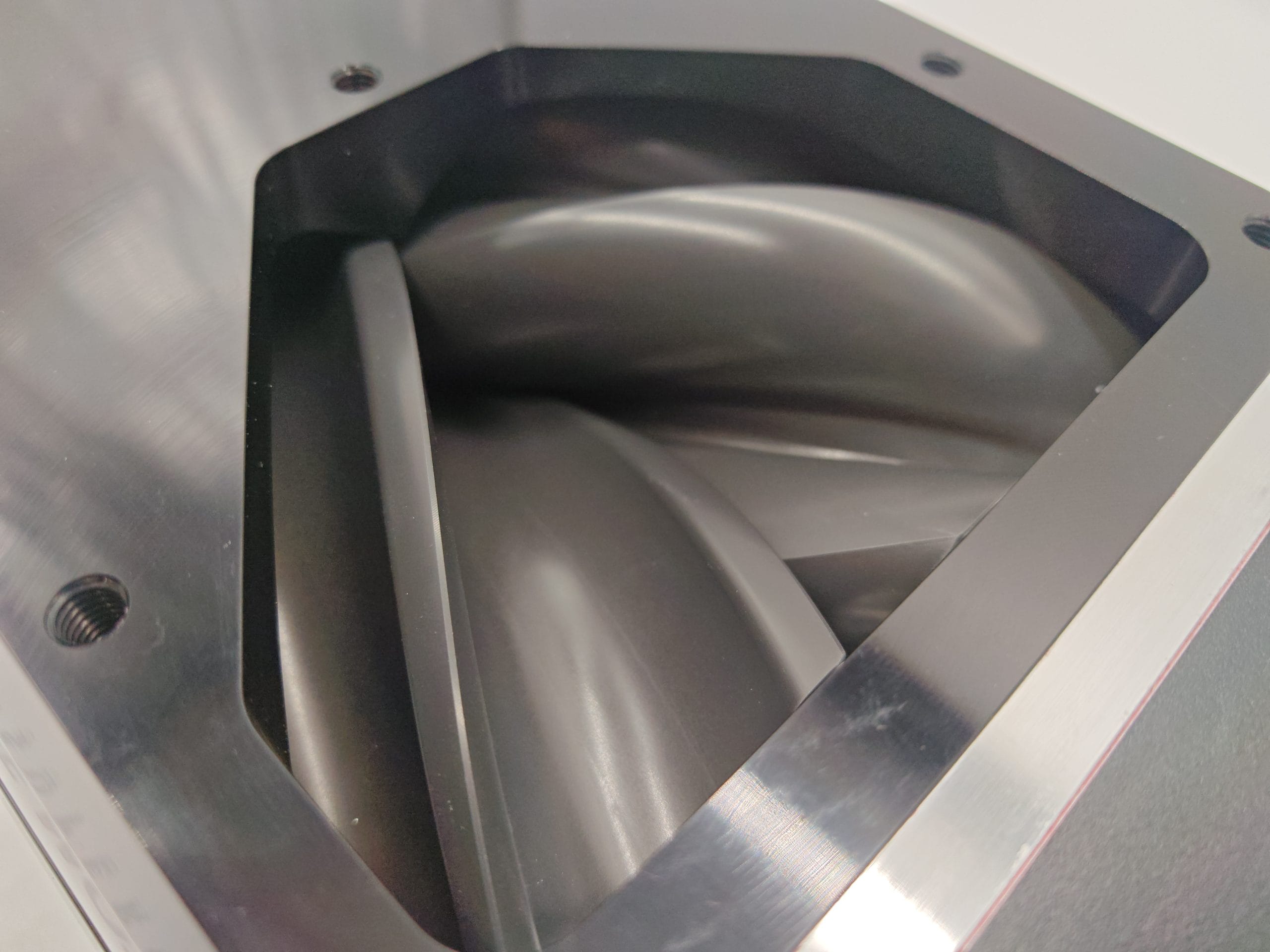

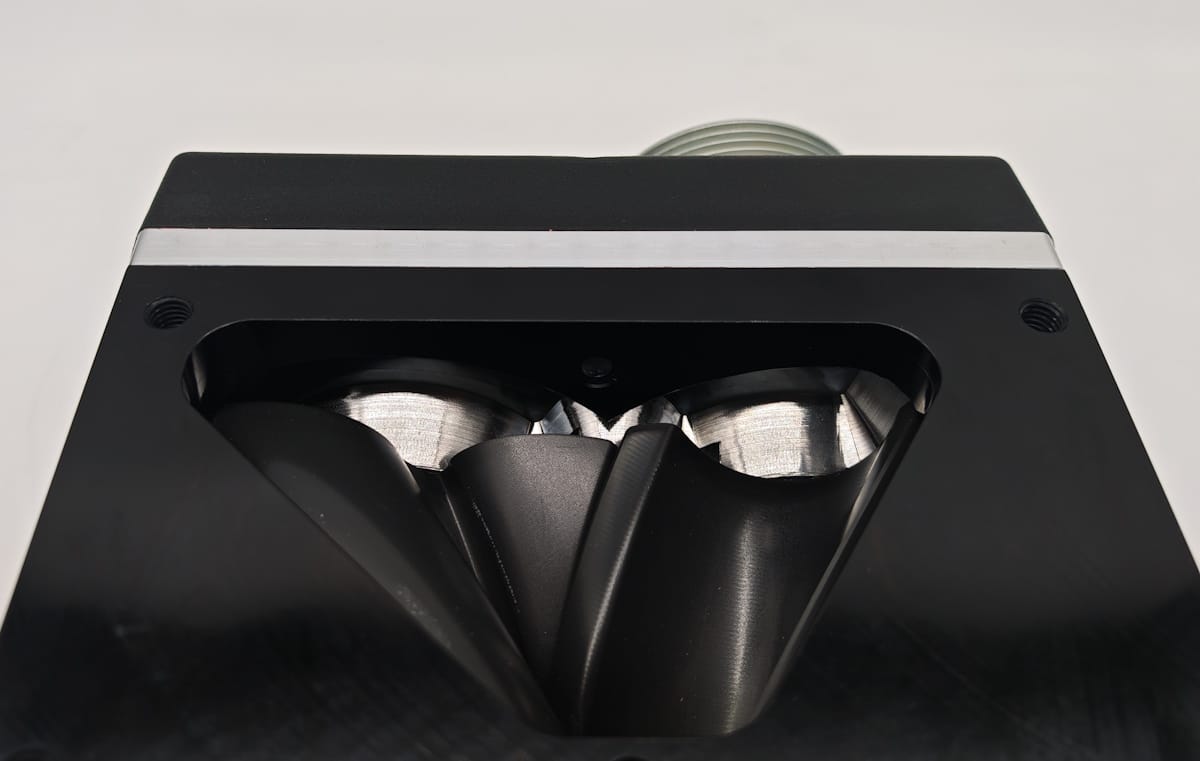

The modern 4×6 twin screw lobes (rotor) design offers greater efficiency and power output than a traditional Roots based designs as well as twisted lobe designs of older twin screw superchargers . This adds up to 60% less parasitic losses & cooler discharge temperatures.
Compact Design

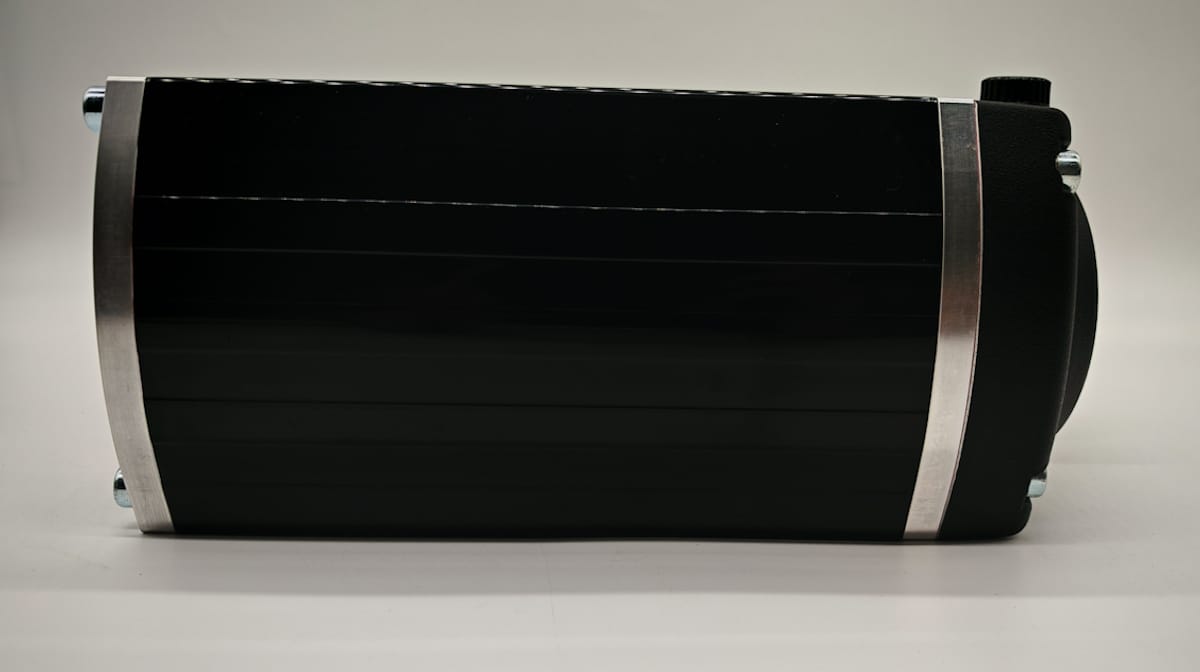

With a body length starting at just under 27cm for the smallest 1.2L units and ranging up-to 40cm for the largest 4.7L units, Hyde Twin Screw Superchargers offer a extremely powerful unit in a very compact package which is advantageous for applications where installation room is limited.
Highly Customizable

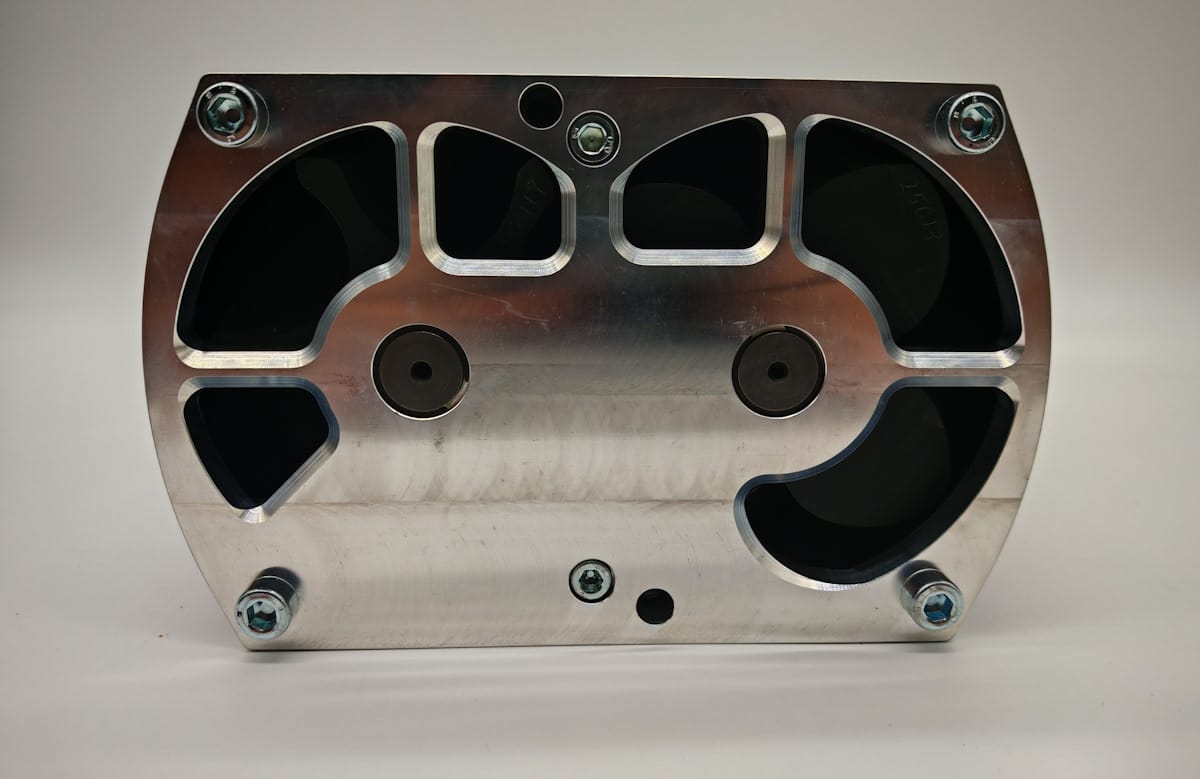

With over 10 years experience in building Supercharger Kits for Classic European Cars, We understand the importance of customization in Forced Induction applications. This is why we offer more than just a Supercharger. We also offer Custom Pulley Sizes, Custom Length Extended Drive snouts, Water Cooling option as well as our Universal Mounting Mechanism with Supercharger Inlet & Outlet options!
OEM Replacement & Upgrade
Our lineup was built to be a budget friendly upgrade path for the existing OEM Eaton Superchargers used in our Supercharger Kits as well as a modern replacement for cars with factory equipped Superchargers such as Mercedes-Benz Kompressor, AMG, Mini Cooper S, Ford Mustang, Dodge Charger, Challenger, Jaguar XKR, XJR, Rage Rover Sport and many others.
Installation Support
As our main business model is building Supercharger Kits, we are quite confident in our ability to help you pursue your Forced Induction goals. Through our authorized partners in Europe, Australia and United States, we are able to offer installation as well as accommodate custom builds based on our Twin Screw Supercharger units.
Videos
Watch related videos, kits & builds
Setup and Maintenance
Learn how to install, maintain & service the Hyde Superchargers
To ensure the proper operation of your Hyde Supercharger unit and to do necessary periodic maintenance, please follow the instructions given in the manual below.
Always follow the recommended instructions from your Supercharger Kit manufacturer. The manual itself outlines general maintenance topics. Should you wish to build your own custom setup, require further information, have any questions or encounter any issues, then please contact us.
Do You Want to buy the Hyde Supercharger?
Our Resellers
Our Twin Screw Superchargers are sold directly to customers with a 1 - 3 Year Warranty. We Ship Worldwide from Europe. You can order online from the official Hyde Motor Works Shop or through our Global Resellers.
